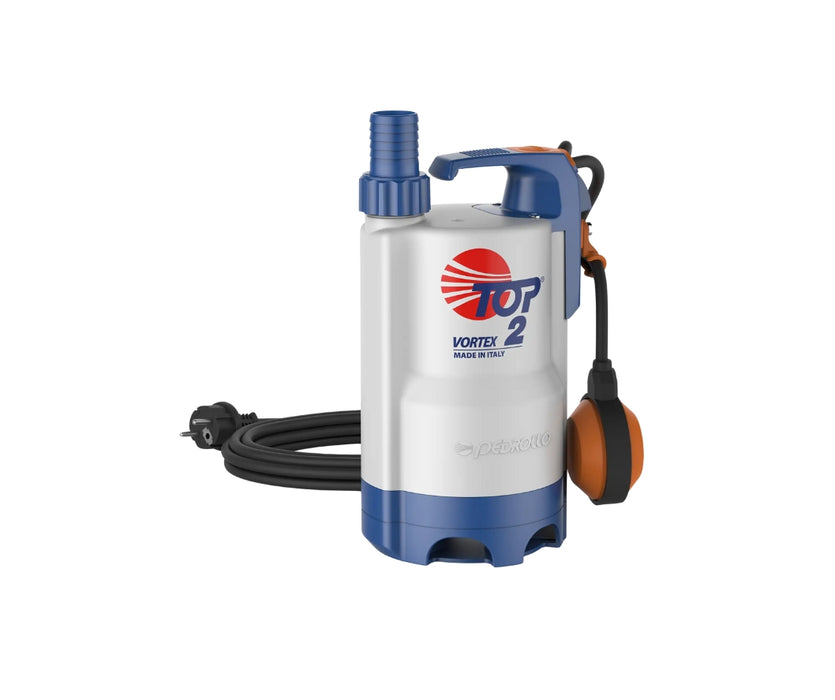

Top Vortex

TOP-VORTEX pumps are suitable for draining clear water without abrasive particles that will not damage the pump’s components. Construction features ensure user-friendly and safe operation, including motor cooling and a double shaft seal. These pumps are particularly well-suited for domestic applications, including draining dirty water, emptying tanks, managing domestic drains, and clearing sumps, even in the presence of suspended solids of up to 25 mm in diameter.

PERFORMANCE RANGE
• Flow rate up to 170 l/min (10.2 m3/h)
• Head up to 8.7 m

APPLICATION LIMITS
• Maximum operating depth below water level up to 3 m (with an appropriately sized power cable)
• Liquid temperature up to +40 °C and up to +90 °C for short bursts (up to 3 minutes max) for intermittent service
• Capable of processing suspended solids up to Ø 25 mm
• Draining capability up to 25 mm from the bottom

INCLUDES
• 5 m power cable
• Float switch
