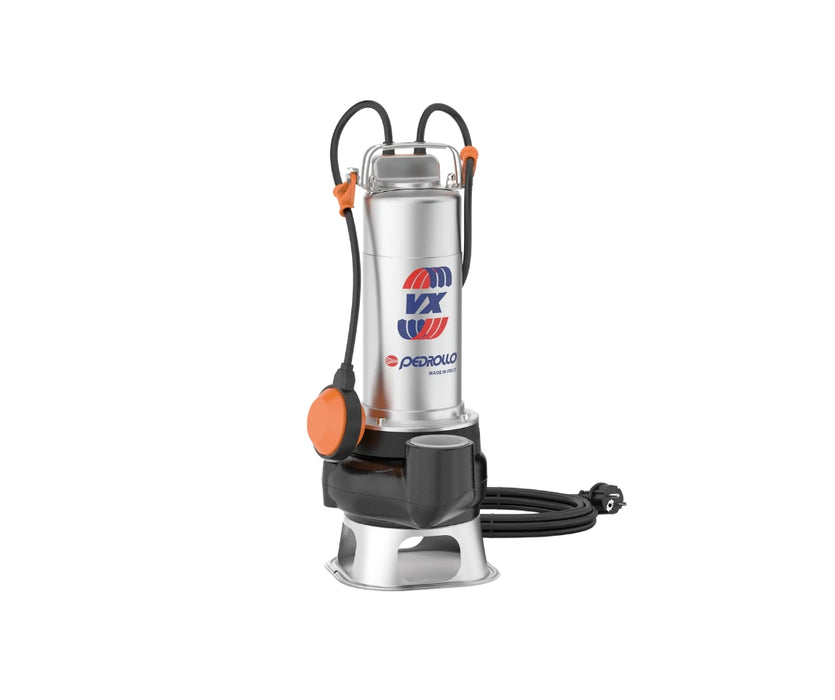

VX Submersible Vortex Pumps for Dirty Water (Three Phase)

VX pumps are renowned for their reliability, especially inautomated fixed installations.
Ideal for domestic, civil, and industrial settings, they efficiently handle suspended solids up to 50 mm in diameter, including in groundwater, surface water, and sewage.
They are also perfect for pumping out flooded areas like basements, underground parking garages, car wash stations, and emptying septic tanks and sewage systems.
• The VORTEX impeller can handle solids up to 50 mm in diameter. Its unique design ensures safe operation against clogging.

PERFORMANCE RANGE
• Flow rate up to 750 l/min (45 m3/h)
• Head up to 15.5 m

INCLUDES
• Power cable length:
– 5 m for VX 8 and VX 10
– 10 m for VX 15 and VX 20
• Float switch (exclusive to single-phase models)

APPLICATION LIMITS
• Depth below water level up to 5 m (with an appropriately sized power cable)
• Liquid temperature up to +40 °C
• Suspended solids transfer:
- up to Ø 40 mm for VX /35
- up to Ø 50 mm for VX /50
• Minimum immersion for continuous service:
- 290 mm for VX 8 and VX 10
- 330 mm for VX 15
- 360 mm for VX 20
